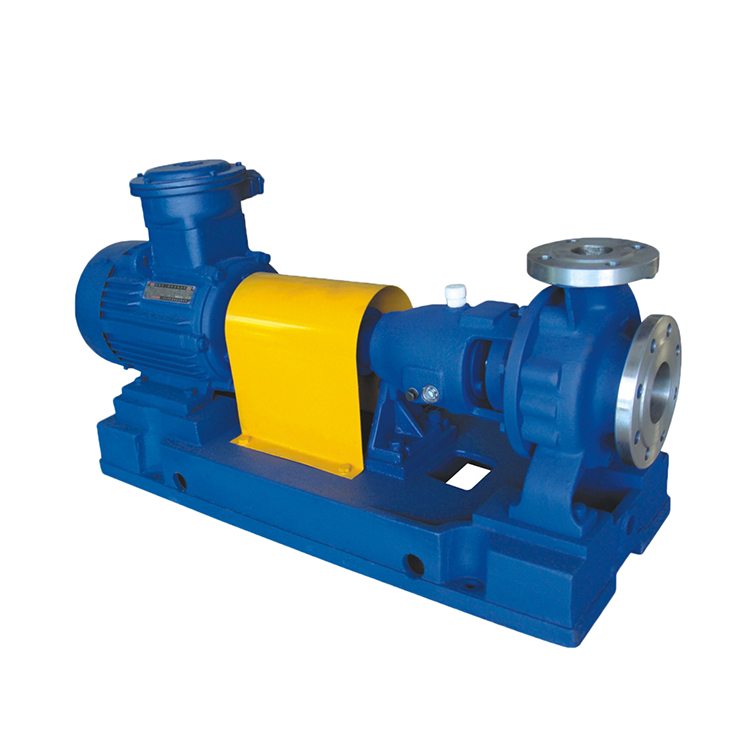

CZ standard chemical pump

Caliber: DN32-DN300mm
Capacity:6-1400m3/h
Head: 4-135m
Work temperature: -90℃--180℃
Pressure:≤2.5MPa

Overview CZ series standard chemical pump is horizontal, single stage, single suction centrifugal pump; Its dimensions and performance conform to DIN24256/ISO2858 standards. The performance range of CZ series standard chemical pump includes all the performance of IH series standard chemical pump, and its efficiency, cavitation performance and other indicators exceed that of IH type pump.

Overview CZ series standard chemical pump is horizontal, single stage, single suction centrifugal pump; Its dimensions and performance conform to DIN24256/ISO2858 standards. The performance range of CZ series standard chemical pump includes all the performance of IH series standard chemical pump, and its efficiency, cavitation performance and other indicators exceed that of IH type pump.

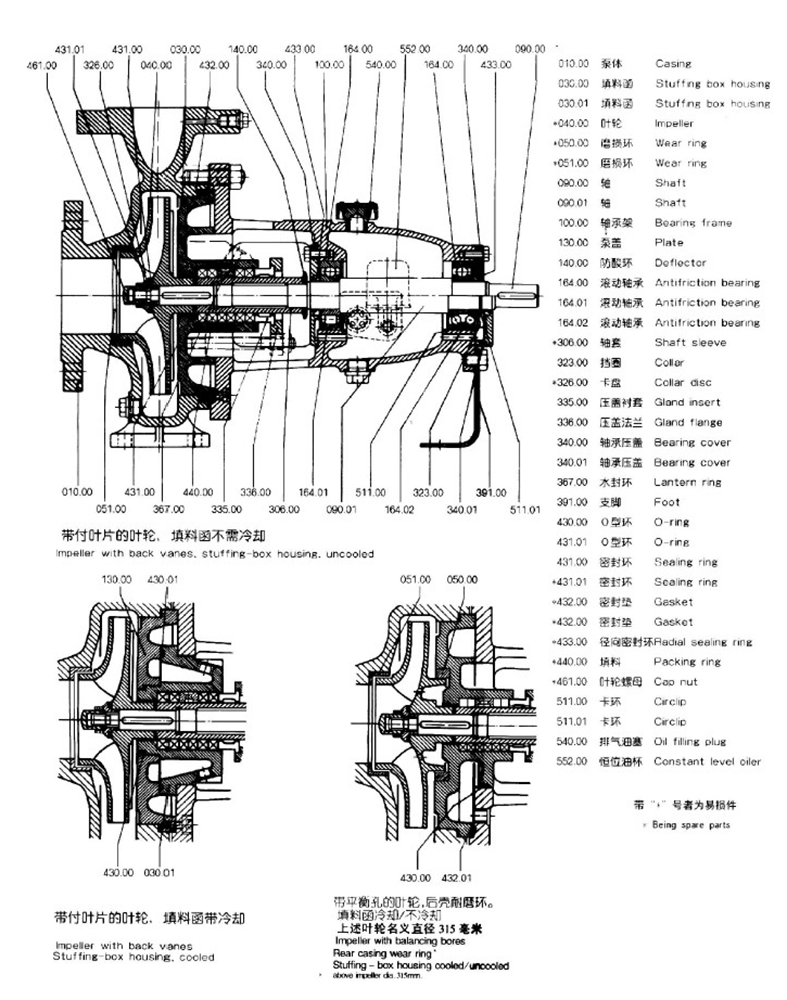

Sectional Drawing：

Application:
Transporting low or high temperature liquids; Neutral or corrosive liquid; Clean or liquid containing solid particles. Especially suitable for: chemical and petrochemical industries; Oil refinery; Paper mills and pulp industries; Sugar industry

Pumped Medium:
Various temperature and concentration of sulfuric acid, nitric acid, hydrochloric acid and phosphoric acid such as inorganic and organic acids. Alkaline solutions such as sodium hydroxide and sodium carbonate at various temperatures and concentrations. All kinds of salt solutions. A variety of liquid petrochemical products, organic compounds, and other corrosive raw materials and products. At present, our company's corrosion resistant materials can meet the requirements of the above various media. When ordering, please provide the details of the medium to be transported.

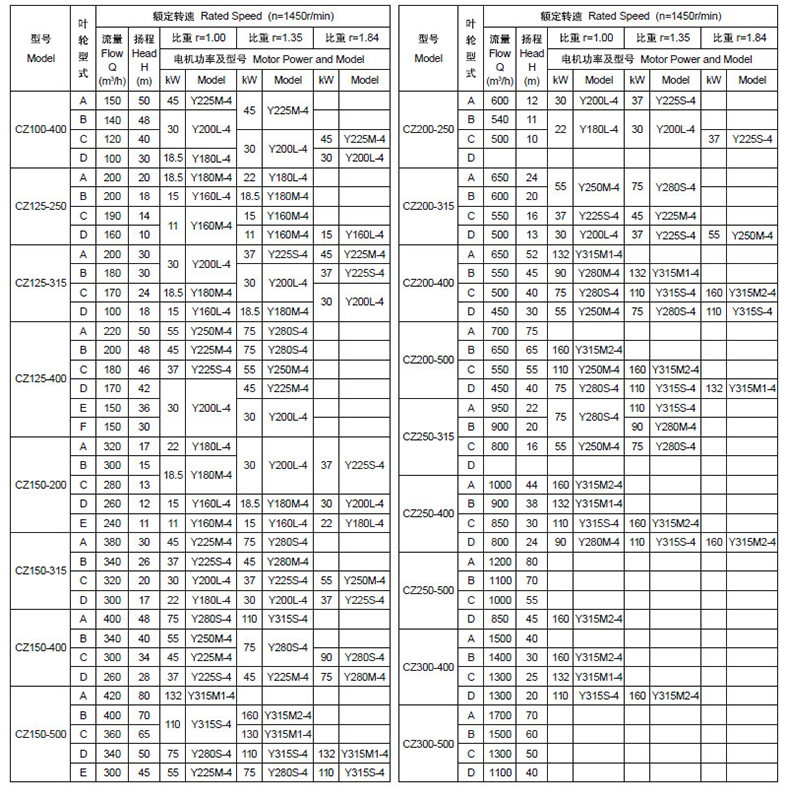

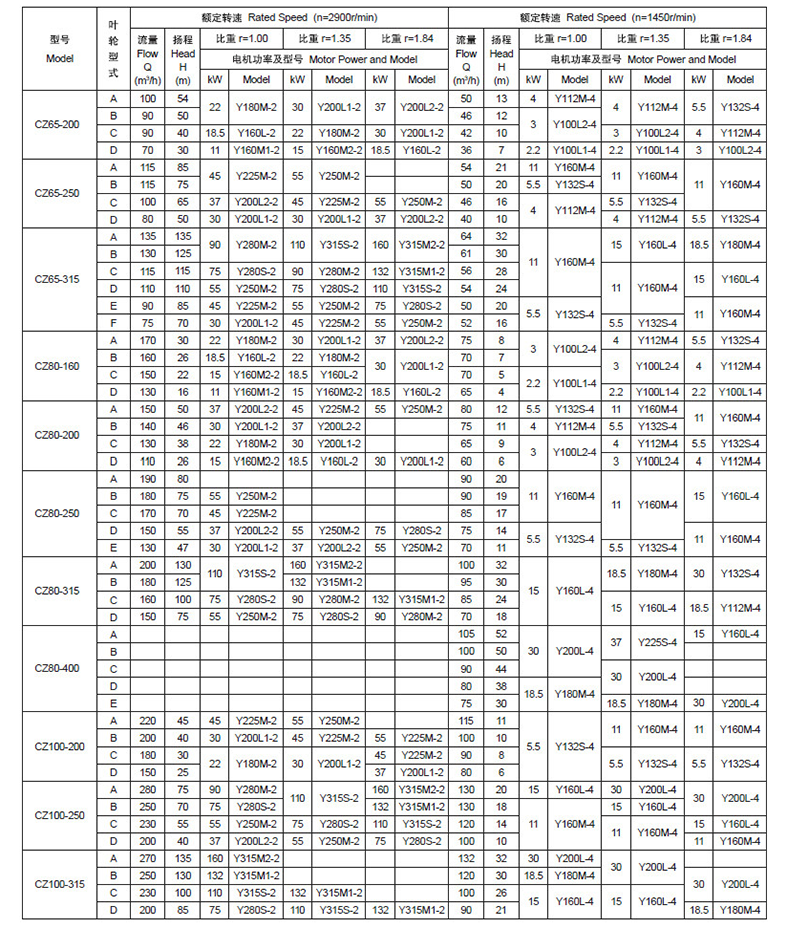

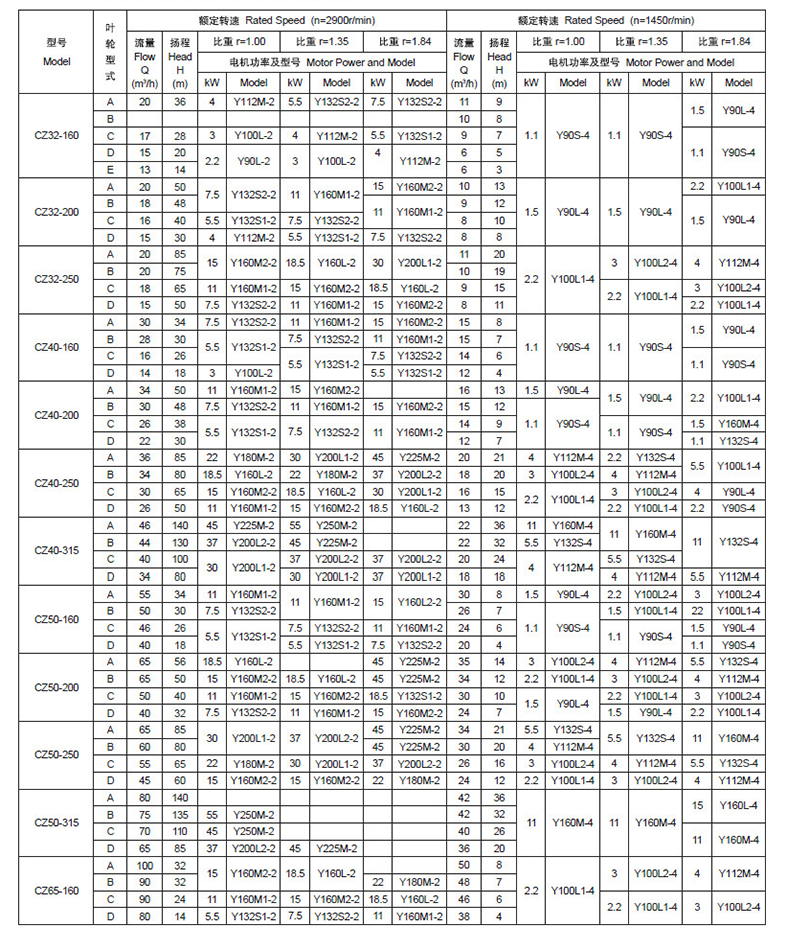

Performance Parameter

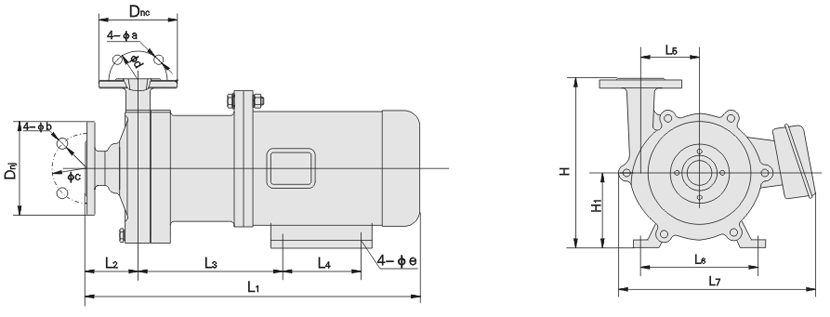

Installation Dimension:

Model	4- φa	4- φb	φC	φd	Dnc	Dnj	4- φe	L1	L2	L3	L4	L5	L6	L7	H	H1
16CQ-8	Pipe connection						7	330	60	125	71	50	90	140	140	60
20CQ-12	Pipe connection						8	350	57	130	80	55	100	160	170	73
25CQ-15	10	12	75	65	90	100	10	460	68	190	100	72	125	240	205	80
32CQ-15	12	14	90	75	100	120	10	460	68	190	100	72	125	240	205	80
32CQ-25	14	14	90	75	100	120	10	460	68	190	100	85	125	260	260	80
40CQ-20	14	14	100	90	120	130	10	545	75	235	125	78	140	290	220	90
40CQ-32	14	14	100	90	120	130	12	620	80	271	140	91	190	336	260	112
50CQ-25	14	14	110	100	130	140	12	620	80	271	140	91	190	336	260	112
50CQ-40	14	14	110	100	130	140	12	620	90	305	140	91	190	336	260	112
50CQ-50	14	14	110	100	130	140	12	695	90	305	140	0	216	350	300	132
65CQ-25	14	14	130	110	140	160	12	695	90	305	140	91	216	350	300	132
65CQ-35	14	14	130	110	140	160	12	720	76	360	140	0	216	350	292	132
