Motor: 0.37kw~250kw
Flow rate: 2~1300 tons per hour
Caliber: DN25~DN350
Head: 8 m ~120 m
Pump type: vertical/horizontal
Caliber: DN25-DN250
Flow rate: 5L/S~100L/S
Power: 4kw~160kw
Material: Impeller and pump shaft are 304 material, pump shell is cast iron material
Certificate: including 3CF production certification and fire equipment production certification
Flow range :3l/s to 300l/s
Lift range :30m~240m
Overcurrent material: HT200/304/316
Inlet and outlet diameter: 50mm~300mm
Speed: 1450/2900r/min
Traffic range :3I/s to 300l/s
Lift range :30m~240m
Overcurrent material: HT200/304/316
Inlet and outlet diameter :50mm~300mm
Speed :145012900r/min
Liquid temperature: -15C to +120°C
Ambient temperature: MAX +40°C
MAX small inlet pressure: 0.5 m head according to NPSH curve +MAX small head.
Hot and cold clean, non-flammable and explosive liquids that do not contain solid particles or fibers.

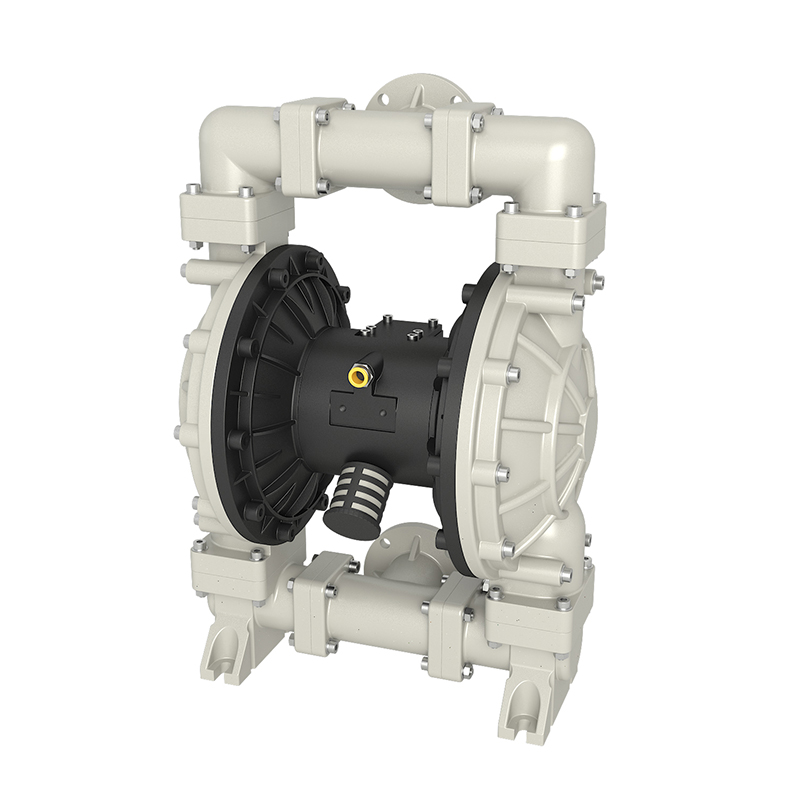

Performance and advantages:Compressed air is used as the power source to transport volatile, inflammable and highly toxic liquids.
Simple structure, high temperature resistance and high pressure.Environmental protection, chemical industry, petroleum, metallurgy, electricity and food.

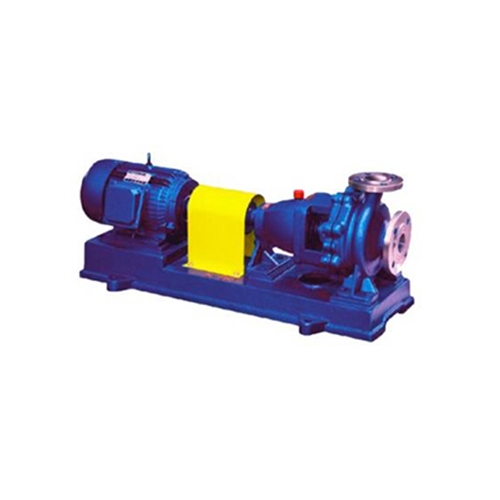

Single stage single suction ( axial suction ) cantilever centrifugal pump.Environmental protection chemical, pharmaceutical, petroleum, electroplating, food
lt is convenient to use and maintain without leakage, and the motor adopts explosion-proof motor.Ensure safe and reliable operation.

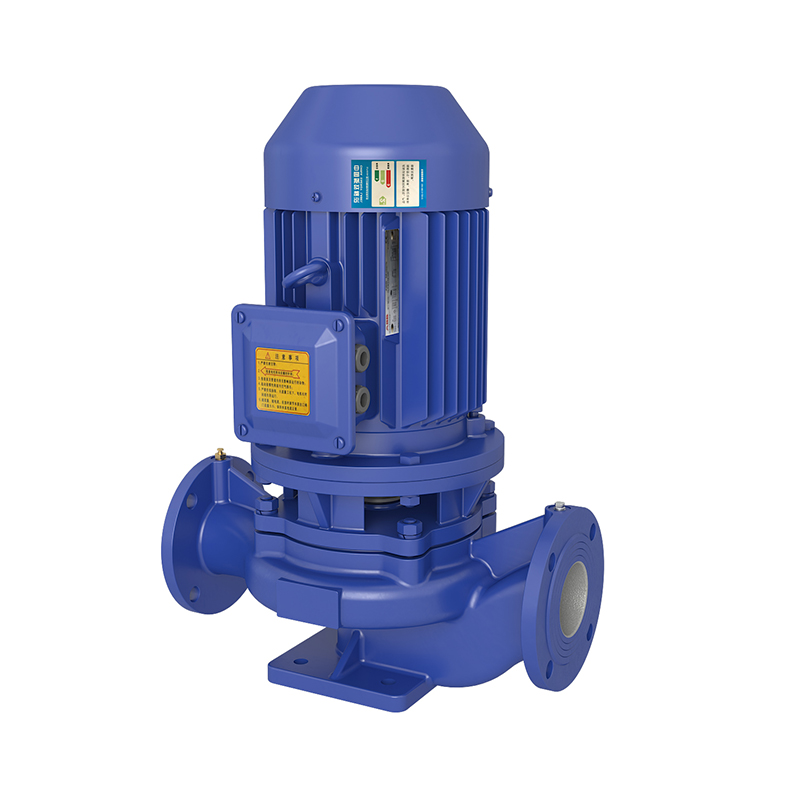

High-efficiency energy-saving and pipeline-type structure,Convenient installation and electromechanical integration,Small floor area and smooth operation.
Pressurization, water supply, heating, cold air conditioning and refrigeration of high-rise buildings
High efficiency and energy saving, stainless steel stamping forming, small volume,Beautiful appearance, stable performance and long service life.
GSB-L1 Series: Vertical High-Speed Centrifugal Pump
GSB-L2 Series: Vertical High-Speed Centrifugal Pump
GSB-L3 Series: Vertical High-Speed Centrifugal Pump
